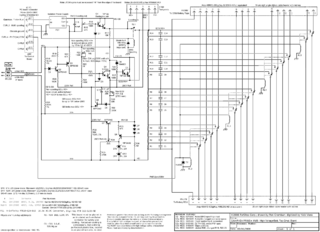

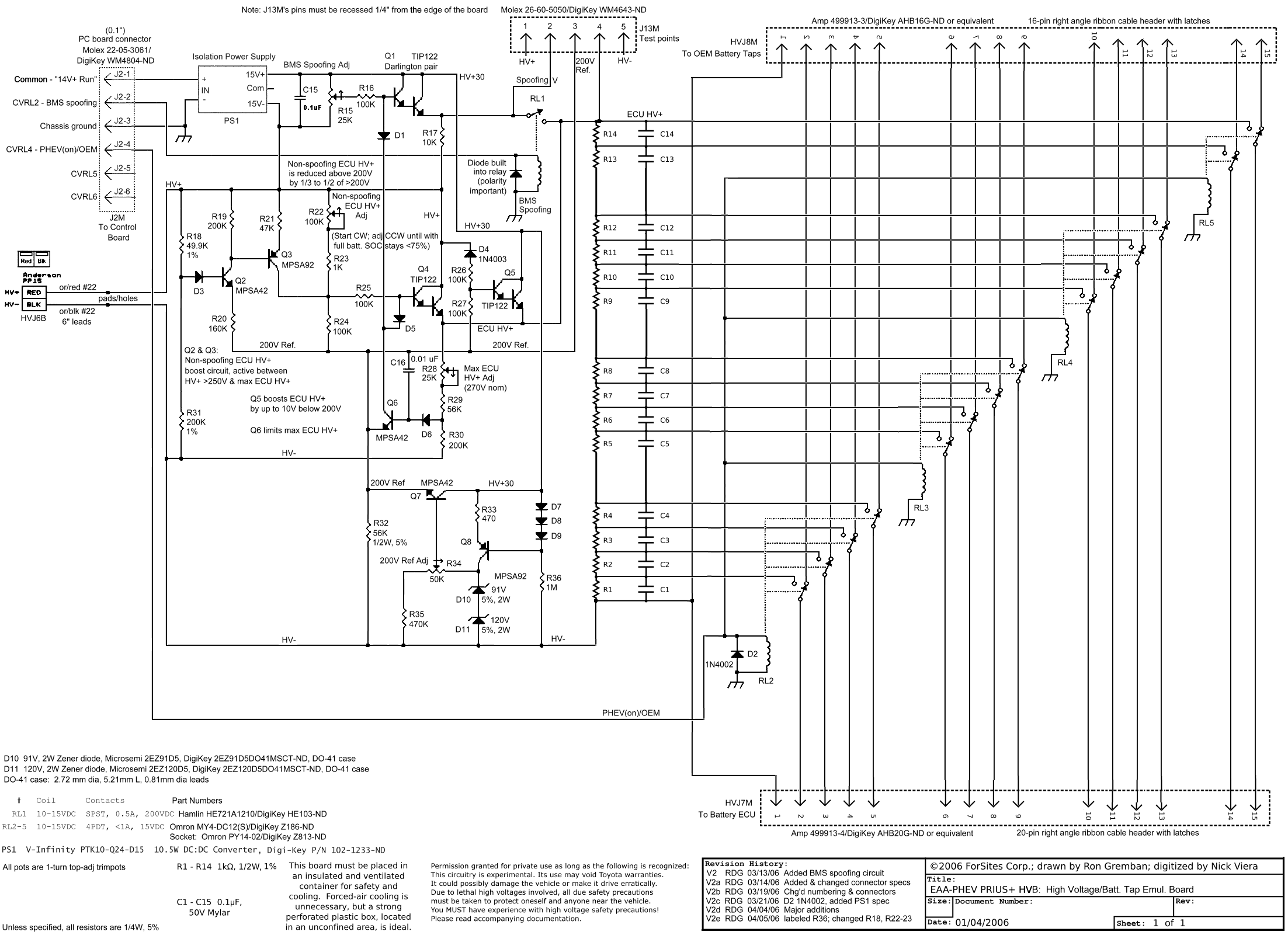

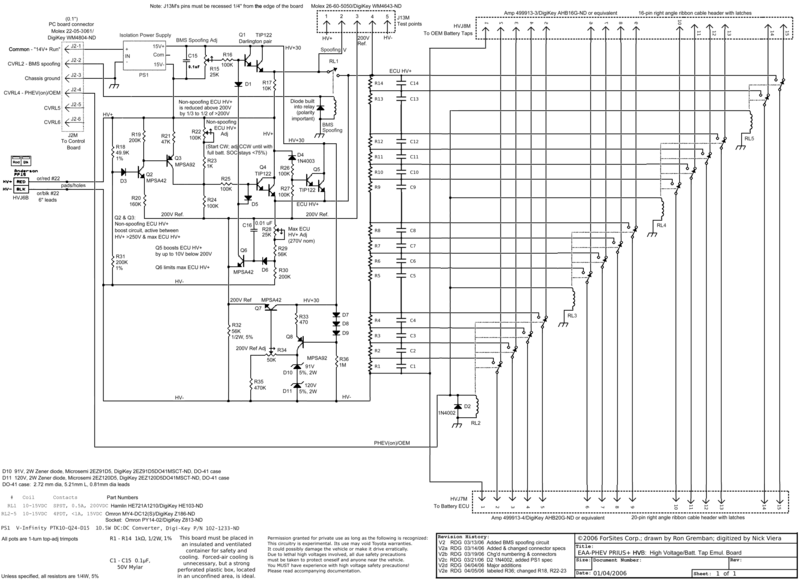

File:EAA-PHEV-PRIUS-HVBoardSchematicV2e 060405.png
Original file (2,205 × 1,601 pixels, file size: 224 KB, MIME type: image/png)
Prius PHEV Schematics High Voltage Parts List
Parts List Version 2c.:
- F1-4 : LPJ-60SP fuse in JT60060 finger-safe holder
- F3,4 : AGC 1/4A, 1250VAC fuse in HFA holder
- F5 : ATC-15 32V blade fuse in HHD in-line holder
- Thr1-4 : thermister, 10K @ 25 deg C, -4.40%/degC DigiKey:KC003T-ND or DigiKey:KC009G-ND
- more...
Parts List Version 1a.:
- F1 - 4 = Bussman LPJ-60P fues in Bussman JT60060 holder
- F6 - 7 = 0.5A 3AG inline fuse
- Thr1-4 = thermister, 10K @ 25 deg C
- Battery ECU plug replaced with Wire Frame, Toyota P/N 82165-47040 (part of battery tap)
- HVRL1 = Kilovac EV200
- Misc Anderson PP180 & PP15 connectors single pole multi pole
- The contactor, welding cable, economy welding cable crimper, lugs, fans, miscellaneous equipment and electronics supplies, including the isolated DC power supply, are available at http://www.kta-ev.com/catalog/index.html
Click show for a short list of the current PHEV conversion and kit options for the Toyota Prius. |
---|
For Prius conversion details see the Prius PHEV article and comparisons table.
|
--={ Project Overview
}={ 2007 Maker Faire
}={ Theory
}={ Instructions
}={ Parts List
}={ RawData
}={ Latest News
}=--
|
---|
--={ Historic }={ Battery }={ Schematics }={ PseudoCode }={ Photos }=-- |
This is the home of the PRIUS+ PHEV DIY (Do-it-Yourself) documentation. These pages are currently anonymously editable, which may change in the future. Please feel free to use the Discussion page for general discussion and commentary on the main article. If you would like to add to an existing section use the "edit" link near that topic's heading. Don't forget to use the Summary field to describe your changes. While editing use the "Show Preview" button to make sure your changes look like you expect them to, before you click "Save Page". |
This item is out of date but kept for posterity sake, |
The Combined "Map" image below may be out of date and is best for a general overview. | ||
| ||
